K4031-H Mini-ITX Motherboard w Intel Core Ultra 5 or 7 and AI Boost

Home > Motherboards > Industrial Motherboards > K4031-H Mini-ITX Motherboard w Intel Core Ultra 5 or 7 and AI Boost

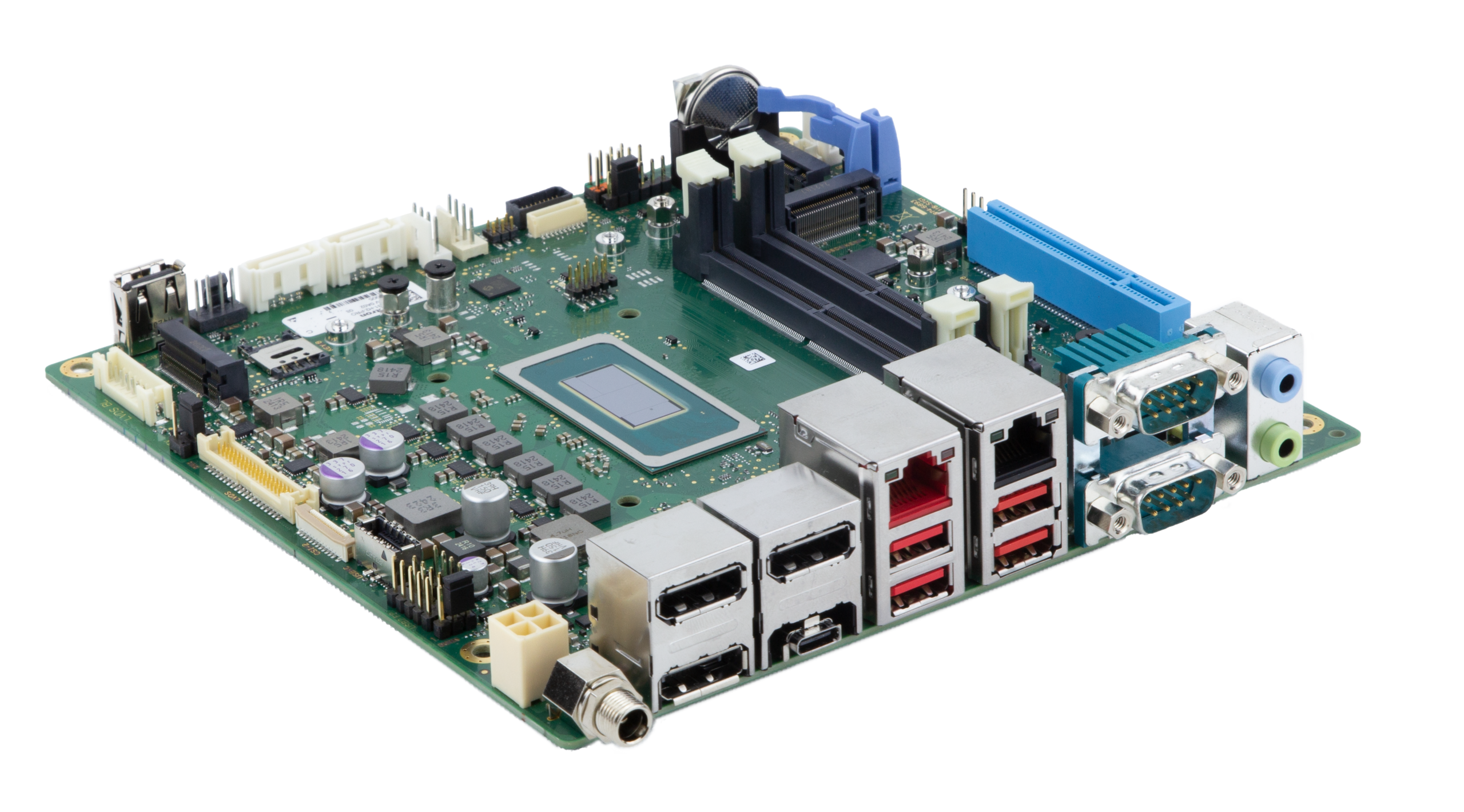

Kontron K4031-H Mini-ITX Industrial Motherboard with w Intel® Core™ Ultra 5 or 7 and AI Boost™

Model: K4031-H

Powered by the latest Intel® Core™ Ultra (aka Meteor Lake) processors, this made-in-Germany mini-ITX motherboard K4031-H delivers outstanding computing performance and advanced graphics via Intel® Arc™ architecture with up to 128 execution units. Supports up to four independent 4K displays or dual 8K outputs, comes with a mix of Display-Ports™, USB Type-C with Thunderbolt™ 4/USB4®, embedded DisplayPort™ and LVDS. Designed for flexibility and scalability, the board features four M.2 slots for storage and wireless connectivity, plus GPIO, dual COM ports, USB 3.2 Gen2. Built for 24/7 continuous operation and rated from -40 to +60°C. Power up the entire computer optionally via USB-C aka "Power Delivery Sink Mode" (9 to 28V / 140W via Type-C). Features built-in "Intel® AI Boost" NPU* (Intel® GNA 3.5, NPU of 11 TOPS or more w incl. CPU & GPU: CPU 5 TOPS GPU 18 TOPS NPU 11 TOPS Total: 34 TOPS). The NPU supports Sparsity, Windows Studio Effects, and the following AI Software Frameworks: OpenVINO™, WindowsML, DirectML, ONNX RT. Ideally suited for a wide range of markets: military, industrial automation, digital signage, AV & broadcasting, AI retail, and medical systems.

Buy now, or contact us for large volume discount pricing:

Request Quote

Download Full Specs   Optional Slim Heatsinked Fan
Optional PC in Chassis 1   Optional PC in Chassis 2

3D/BIOS/Drivers - inquire with Impact

Model
K4031-H
SOCKET TYPE
N/A, embedded, SoC type, K4031-H2 with Intel® Core™ Ultra 5 125H (14-Cores @ 1.2 / 4.5 GHz; TDP 28W or less) or K4031-H5 with Intel® Core™ Ultra 7 155H (16-Cores @ 1.4 / 4.8 GHz; TDP 28W or less)

Chipset

embedded Intel® Core™ Ultra Processor series (Meteor Lake) with Intel® Arc™ GPU with up to eight Xe-cores (up to 128 graphics execution units)

Max Memory

2x SO DIMM sockets for DDR5 5600 SDRAM, up to 96 GByte memory, non-ECC

Graphics Outputs

4x indep. displays up to 4K or up to two 8K: 3x DP V1.4a up to 8K, 1x Thunderbolt™4/USB4® (DP2.1 up to UHBR20 8K), 1x USB-C with DPoC (= DisplayPort over USB-Type-C) via header (USB Key-A), 1x eDP V1.4b up to 5K, 1x LVDS, MIPI-CSI2 camera interface.

Extension Slots

2x Serial ATA III 600; 1x PCIe x8 (8 lanes, Gen5, open slot for x16 card support); 2x M.2 2230/2242/2280 (Key-M, for NVME SSDs), 1x M.2 2230/2242/3052 (Key-B PCIe x2/USB2 /5G modules); Nano SIM socket for 5G module; 1x M.2 2230 (Key-E, for WLAN/Bluetooth, or PCIe/USB/CNVio)

Form Factor

Mini-ITX
OTHER FEATURES
2 LANs 1Gbe & 5GbE, Intel TPM V2.0, 6x USBs by headers, 1x USB 2.0 Type-A internal stick socket, 1x USB-C with Thunderbolt™4/USB4®, 4x USB3.2 Gen2 Type A, 2x RS232, 8 Bit GPIO, Audio out, Stereo Mic in
Note*
NPUs / Neural Processing Units are designed to accelerate artificial intelligence (AI) and machine learning (ML) tasks, such as image recognition, natural language processing, matrix multiplications, and convolutions. NPUs have several advantages over CPUs and GPUs, including: processing large amounts of data in parallel, performing trillions of operations per second, using less power, and being more efficient at AI tasks.
