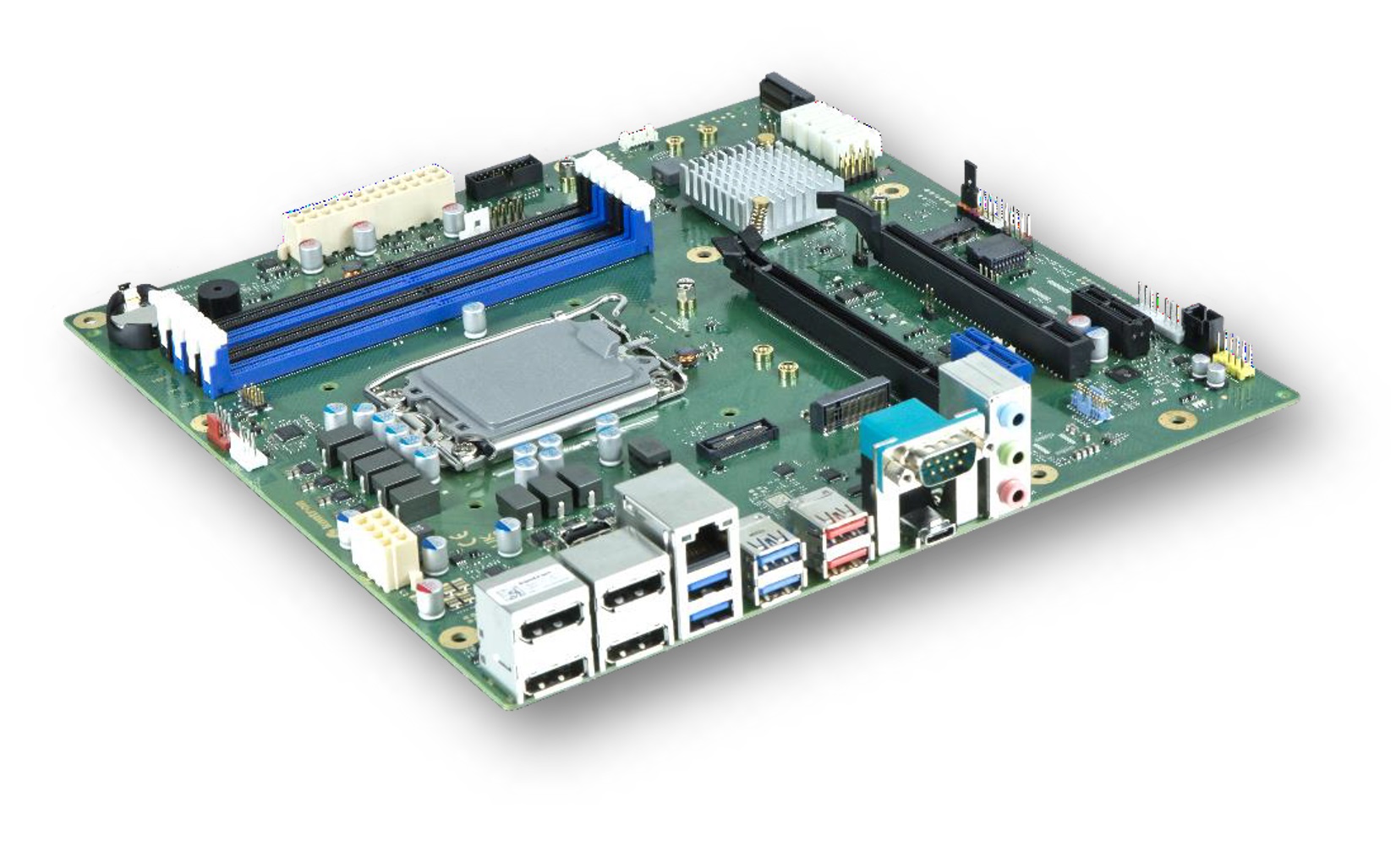

Kontron Industrial AlderLake & RaptorLake micro-ATX
Model: K3841-Q
Powered by the Intel® Intel® Q670E Chipset, K3841-Q supports Intel Celeron® G series, Pentium® Gold G series, or Core i3/i5/i7/i9 processors of 12th & 13th Generation including i9-13900 (24 total cores and 32 threads @ 3 GHz Performance-Core Base Frequency and 2.2 GHz Efficient-Core Base Frequency). Can be built with up to 128GB DDR5 4800 RAM, and optional Intel® UHD Graphics 7xx series driven by Xe Architecture. Features 4 Display Ports, 4 COM ports (one RS232 at rear I/O and 3x RS232 by header), three LANs including 2.5GbE, two PCI Express® x16 (Gen5 @ CPU & Gen4 @ PCH) and two PCIE X1 (Gen3), 8-Bit GPIO, audio, and many USBs plus USB-C 3.2 Gen2. The motherboard supports Intel AMT 12.0 / vPro, which allows a user to control this computer system remotely even in sub-O/S (BIOS) mode. Made by Kontron-Germany for enhanced operating temperature range from 0°C to 60°C and 24/7 continuous operation. This product immediately starts working even at -40C, with “Cold Start” = no problem, per official lab testing in Germany from -40C to +60C, report available upon request. PRESS RELEASE
Buy now, or contact us for large volume discount pricing:
Download Specs M.2 Carrier Board for 1x M.2 PCIe Module
3D/BIOS/Drivers M.2 Carrier Board for 2x M.2 PCIe Modules
Socket Type
Chipset
Max Memory
Graphics Outputs
Extension Slots
Form Factor
