K3921-N mSTX Industrial Series
Model: K3921-N
- Latest DDR5 memory technology for best-in-class system performance
- Intel® UHD Gen12 Graphics - driven by Intel® Xe architecture (within SoC)
- Up to 2x DisplayPort 1.4 and 1x DisplayPort via USB Type-C
- Dual Channel LVDS (24 Bit) and eDP V1.4b (4 K) onboard
- Designed for fanless operation

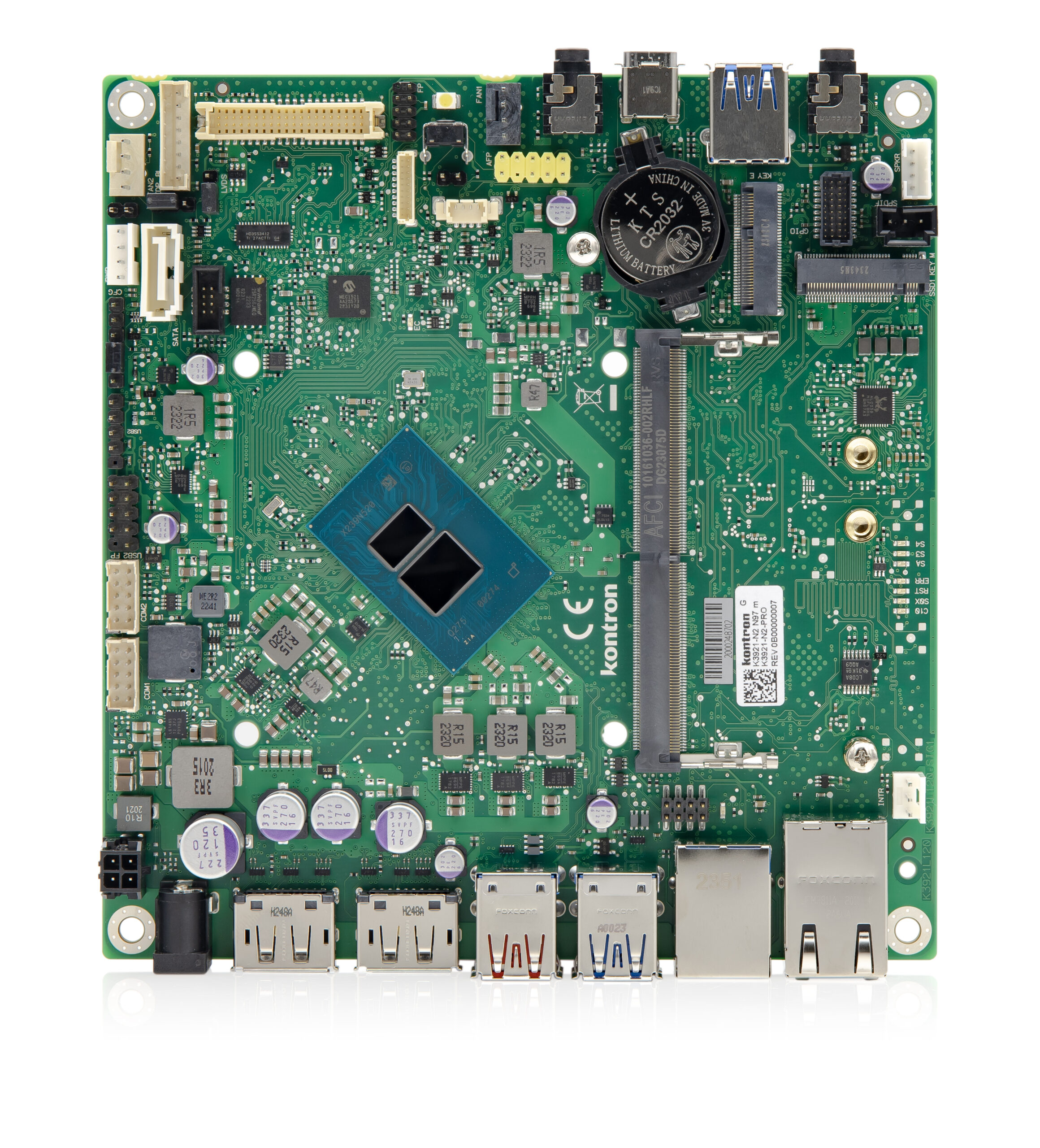

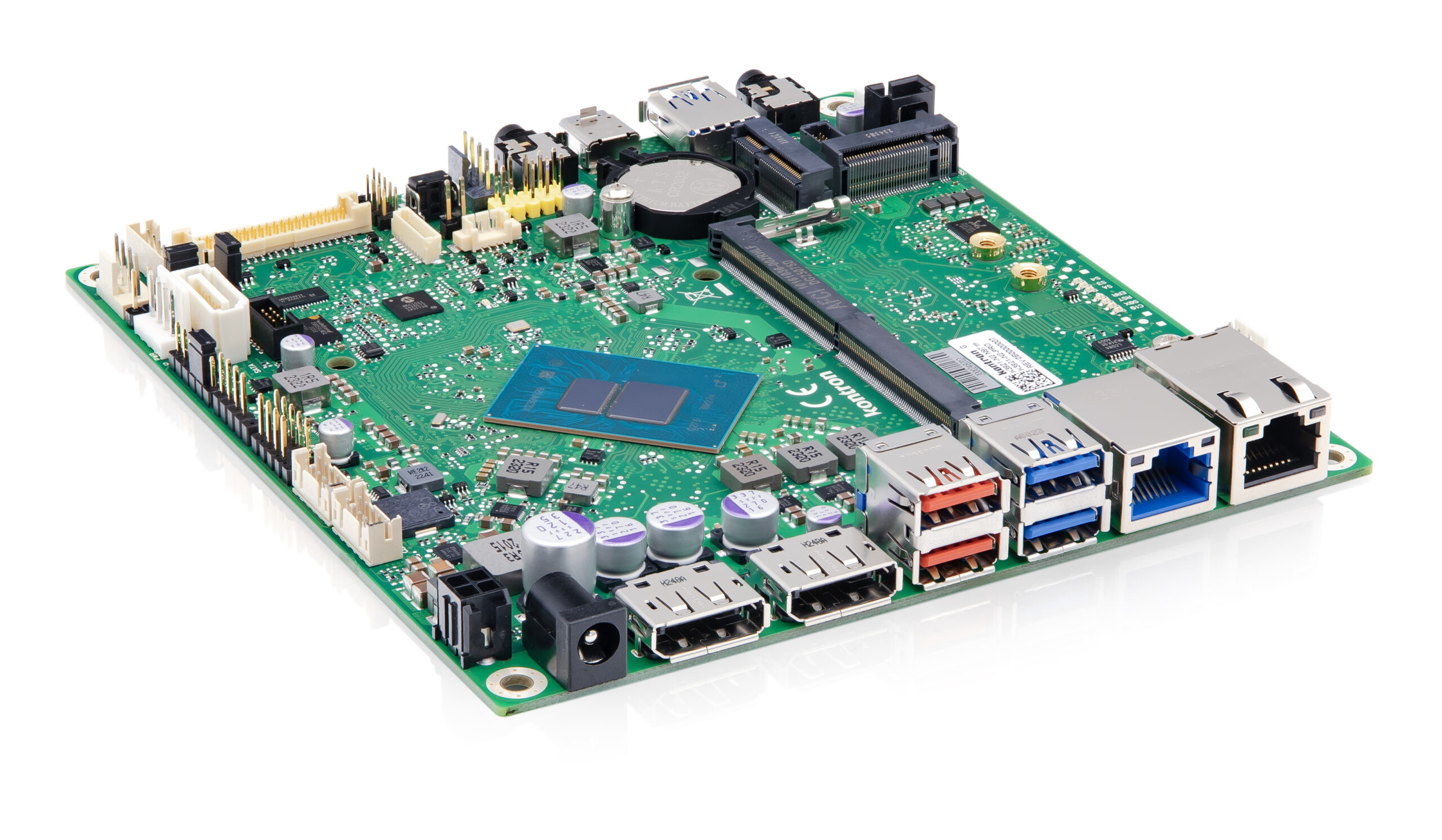

The Industrial Motherboard K3921-N mSTX is based on the latest Intel® Core™ i3 and Intel® Processors series (Alder Lake N) with powerful UHD Gen12 graphics using Intel® Xe architecture. There are two DisplayPorts 1.4, one DisplayPort via front USB-Type-C plus onboard connectors for Embedded DisplayPort and Dual-Channel 24bit LVDS panels. Three independent displays with up to 4K display resolution (2x 4K + 1x FHD) are supported. The K3921-N is equipped with two M.2 (Storage and Wifi) connectors and in addition to this offers many other connectivity options like GPIO, two COM ports and USB 3.2 Gen2. Designed and approved for 24/7 continuous operation and an enhanced temperature range up to 60 °C the K3921-N is applicable in many vertical markets.
Buy now, or contact us for large volume discount pricing:
Chipset
Form Factor
