K3932-N mITX Industrial Series
Model: K3932-N
- Latest DDR5 memory technology for best-in-class system performance
- Intel® UHD Gen12 Graphics - driven by Intel® Xe architecture (within SoC)
- Up to 3x DisplayPort V1.4
- Dual Channel LVDS (24 Bit) and eDP V1.4b (4 K) onboard
- Designed for fanless operation

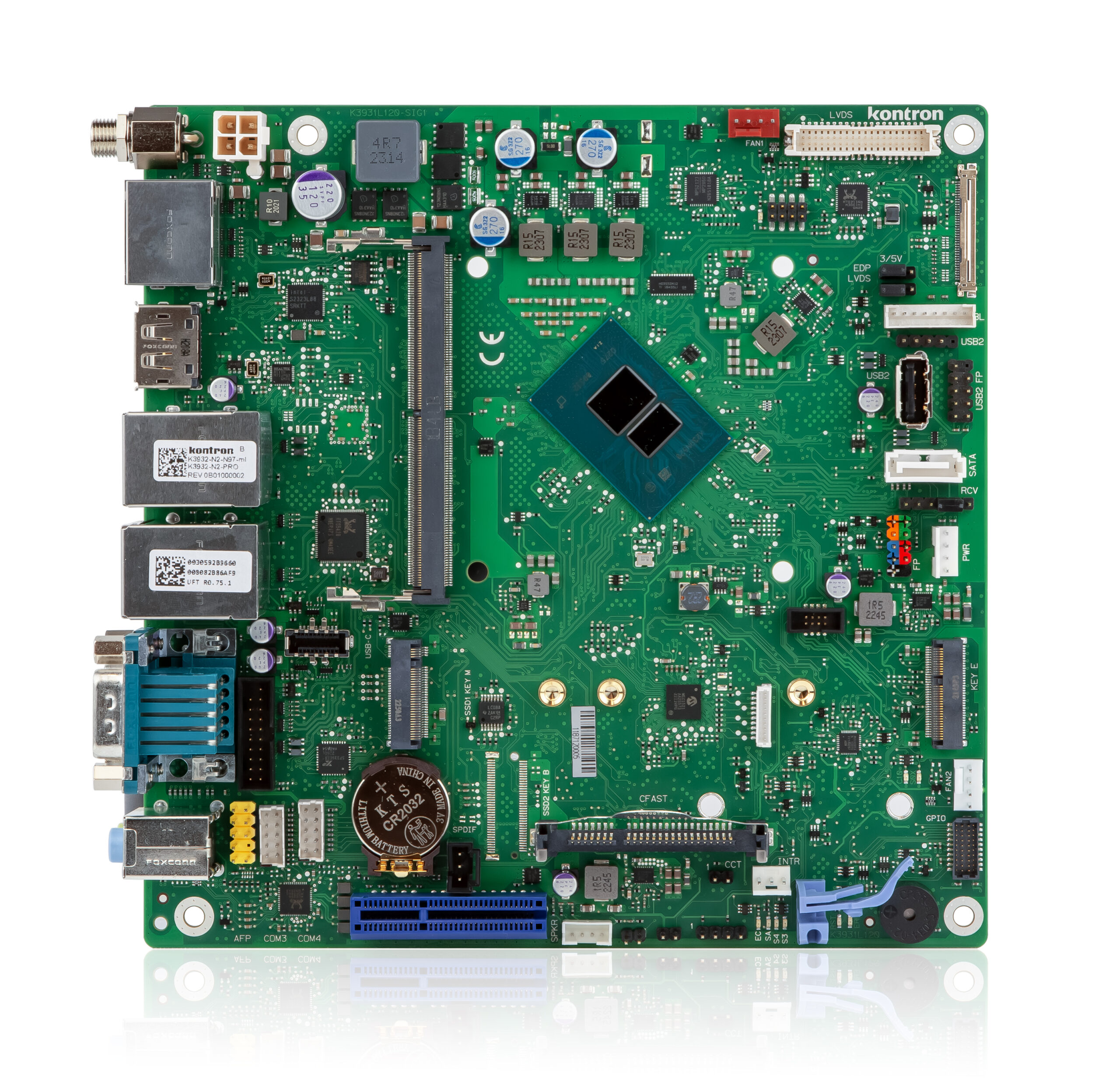

The Industrial Motherboard K3932-N mITX supports the Intel® Core-i3 and Intel® Processor Alder Lake N series with latest UHD Gen12 graphics based on Intel® Xe architecture. It is equipped with three DisplayPorts, one embedded DisplayPort and one Dual-Channel LVDS (24bit) and powers up to three independent displays with up to 3x 4K resolution. It is also equipped with extension slots for PCIe and two M.2 connectors and offers many other functions like GPIO, four COM ports, one ccTalk port and USB 3.2 Gen2. Designed and approved for 24/7 continuous operation and an enhanced temperature range up to 60° C the K3932-N mITX fits perfectly with special requirements of certain markets.
Buy now, or contact us for large volume discount pricing:
Model
K3932-N mITX
Chipset
Intel® Core™ i3/Processor series (Alder Lake N)
I/O Ports
Up to 3x DisplayPort V1.4a
Form Factor
mITX
