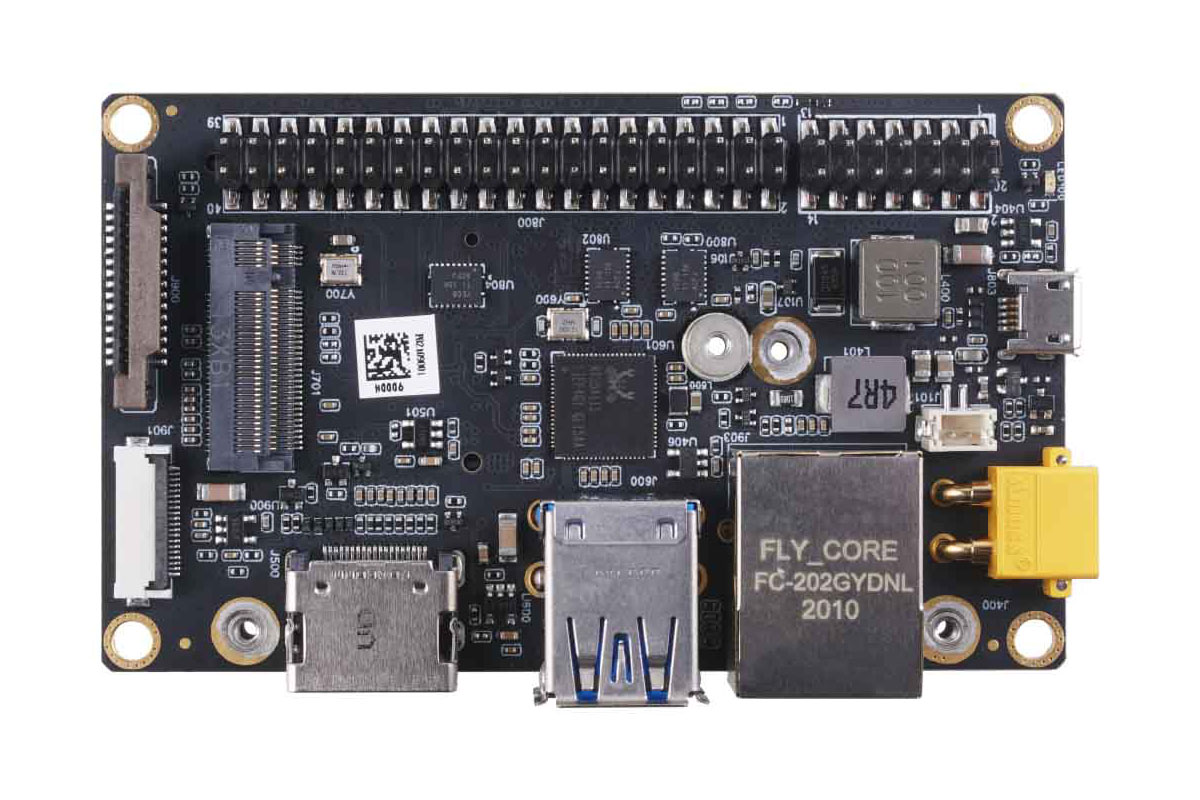

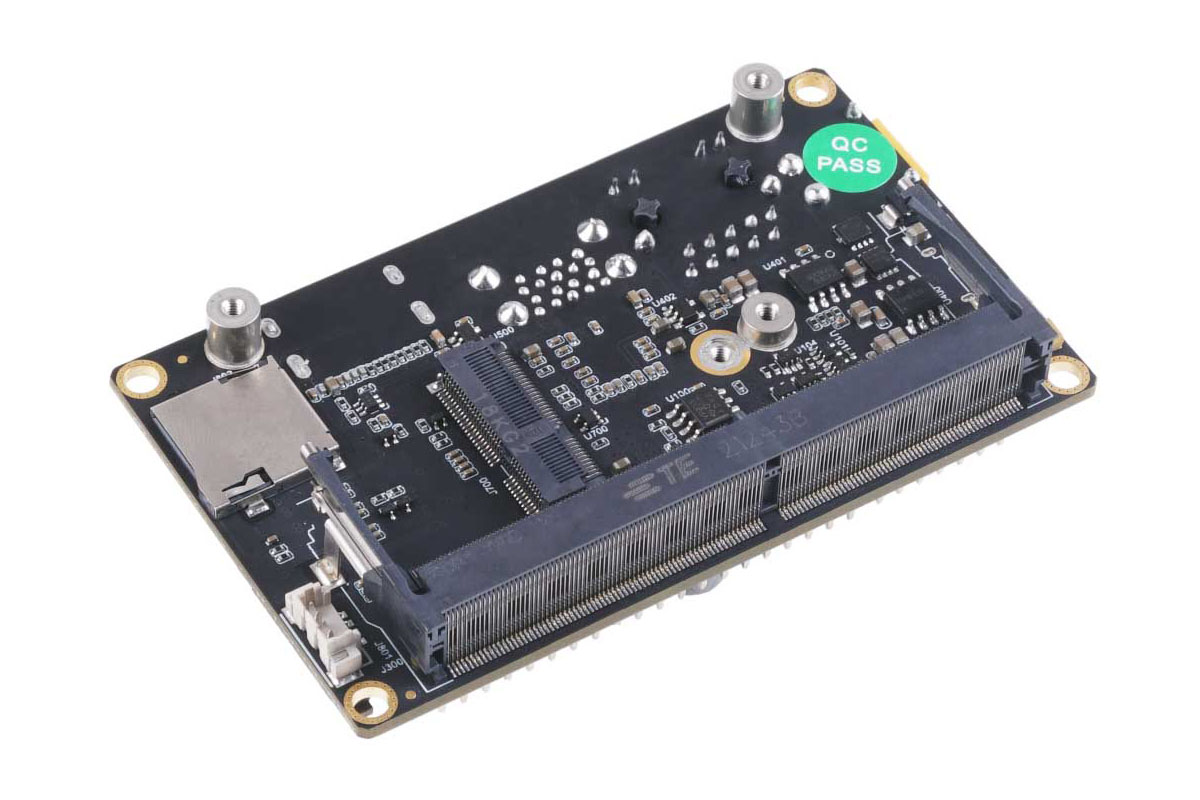

A203v2 Carrier Board for Jetson Nano/Xavier NX/TX2 NX
Jetson A203 V2 carrier board is an upgraded version of Jetson-A203, which is still an extended carrier board specifically for NVIDIA Jetson Nano / Xavier NX/TX2 NX. The rich peripheral interfaces (supporting wifi, bluetooth, SSD, etc) make it suitable for end-to-end AI robot applications in manufacturing, logistics, retail, agriculture, and other industries. With the powerful NVIDIA controlling module(not included) and its compact design, it is good for Video Analysis and Robotics like UAVs, Unmanned boat, Unmanned submarines, etc.
Contact us for large volume discount pricing:
Storage | 1x M.2 KEY M Disk size 2242 | |
1x MicroSD Card Slot | ||
Networking | Ethernet | 1x Gigabit Ethernet (10/100/1000M) |
M.2 KEY E | 1x M.2 Key E PCIe 2230 | |
I/O | USB | 2x USB 3.0 Link1 Type A connector 1x USB 2.0 Micro-B connector USB 3.0 0.5mm pitch 20 pin ZIF |
Camera | 1x CSI | |
Display | 1x HDMI Right Angle Vertical Connector | |
Fan | 1x Fan Picoblade Header | |
Multifunctional Port | 1x 2.0 PITCH 40 PIN (such as UART, GPIO, SPI, etc.) 1x 2.0 PITCH 14 PIN (Reset, CAN, Recovery, etc.) | |
RTC | 1 x RTC 3V, 2 pin | |
Power | DC 19V/4.74A | |
Mechanical (W x D x H) | 87mm x 52mm x 26mm | |
Operating Temperature | -25℃~65℃ | |
