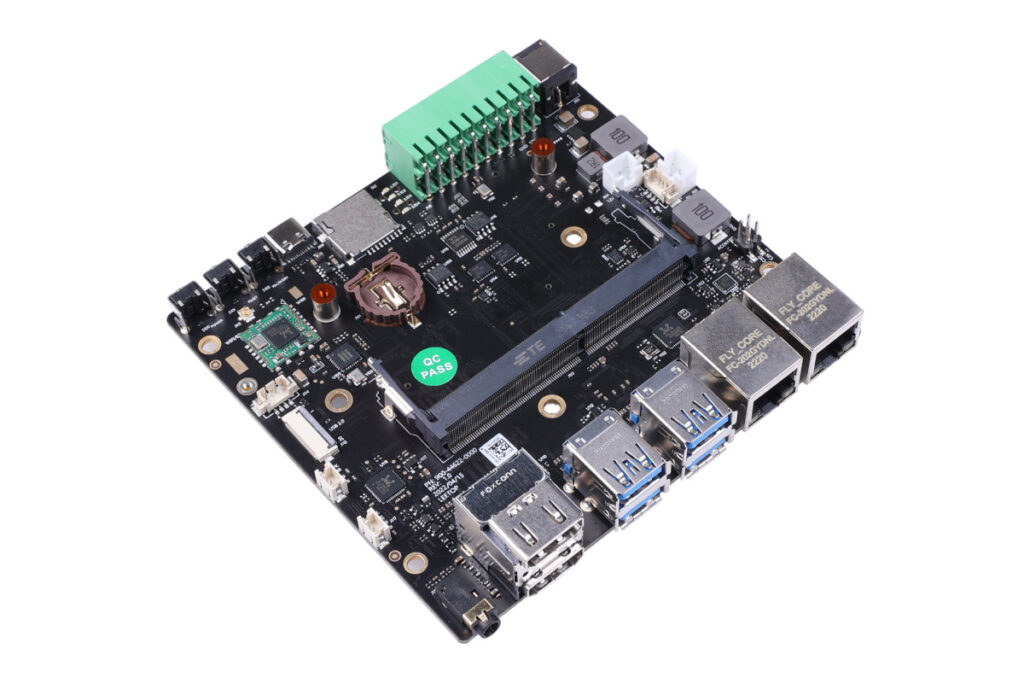

Carrier Board for Jetson Nano/Xavier NX/TX2 NX
Jetson A205E Carrier Board is built with industrial RS232 and 485 interfaces and high-speed I/O communication, fully compatible with NVIDIA® Jetson Nano™ / Xavier™ NX /TX2 NX module and for the industrial embedded AI system building.
Contact us for large volume discount pricing:
Storage | 1x PCIe M.2 KEY M (NVMe SSD); | |
1x MicroSD Card slot | ||
Networking | Ethernet | 2x Gigabit Ethernet (10/100/1000M) |
WiFi/Bluetooth module | ||
I/O | USB | 4x USB 3.0 Type A 1x USB 2.0 Type C 1x USB 2.0 ZIF 20P 0.5mm pitch |
Camera | 1x MIPI CSI-2(Compatible with MIPI CSI and GMSL) | |
Display | 2x HDMI 2.0 | |
Fan | 1x FAN(5V PWM); | |
Audio | 1 x Audio Jack, 2x Speaker Connector | |
Multifunctional Port | 1x CAN 1 x RS485, 1 x RS232 1x UART 1x SPI Bus(+3.3V Level) 2x I2C Link(+3.3V I/O) | |
Power | 9-36V DC Input | |
Mechanical (W x D) | 115mm x 105mm | |
Operating Temperature | -25℃~80℃ | |
