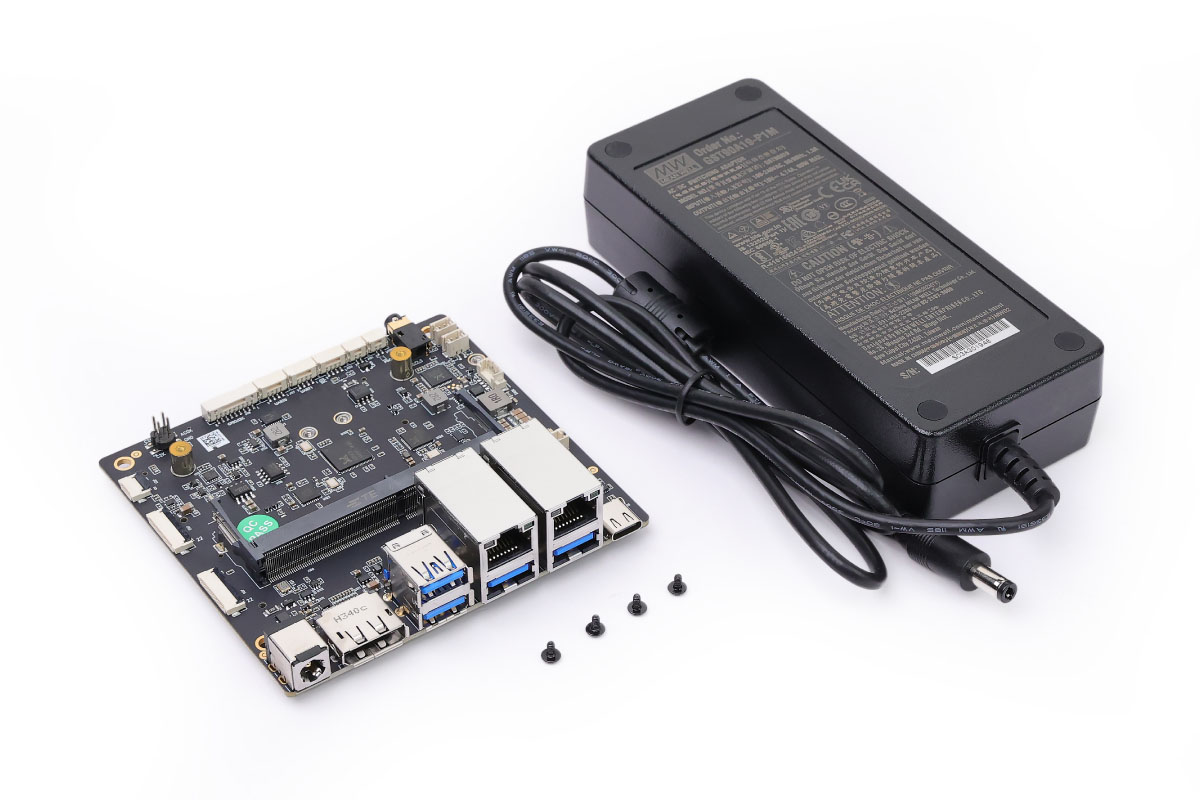

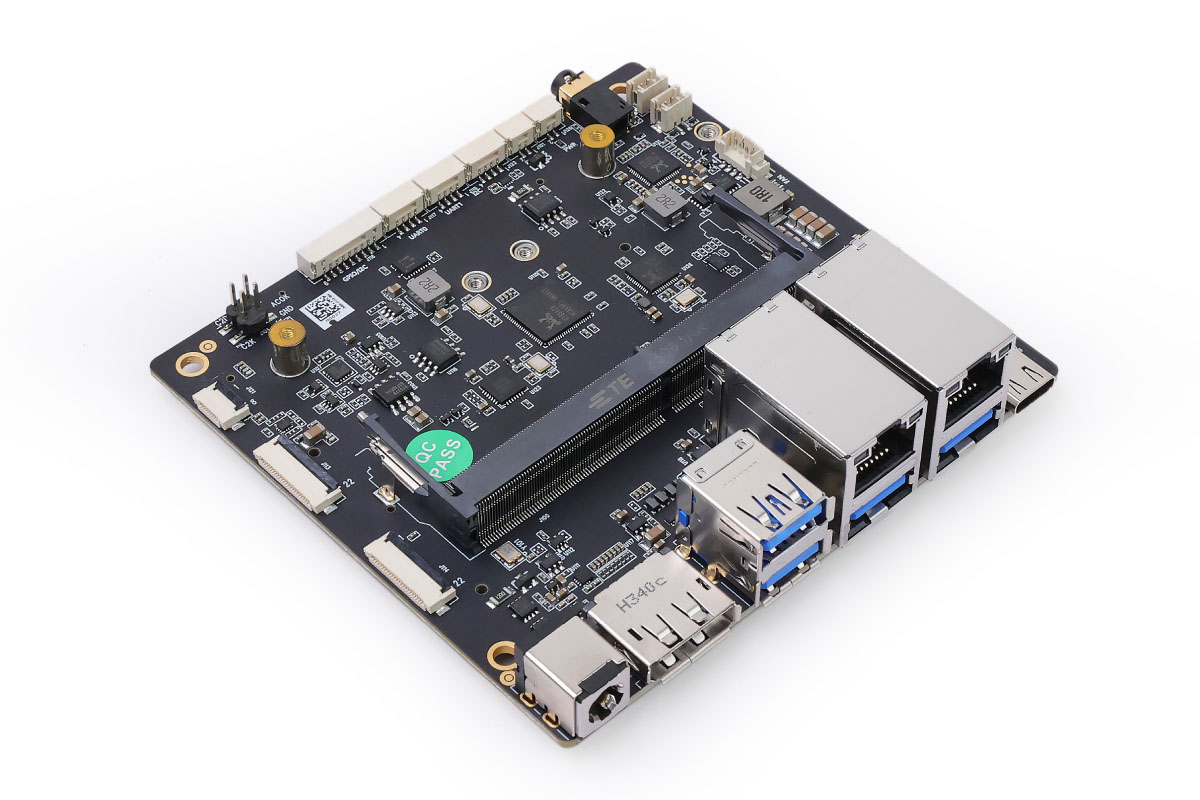

A608 Carrier Board for Jetson Orin™ NX/Orin™ Nano
A608 Jetson Carrier Board is a powerful extension board that supports Jetson Orin™ NX/Orin™ Nano modules. It’s a good choice for handling computer vision tasks and intelligent Generative AI applications in diverse industries, combining the powerful Jetson Orin module with a rich set of interfaces together. Especially providing rich function COM Interfaces, which is compatible with JST-GH ports for Drone and Robotics Integration.
Contact us for large volume discount pricing:
Storage | 1x M.2 Key M 2242 Interface for NVMe SSD | |
Networking | Ethernet | 2x Gigabit Ethernet (10/100/1000M) |
M.2 KEY E | 1x M.2 KEY E(WIFI) Interface | |
M.2 KEY B | 1x M.2 KEY B(4G/5G) Interface | |
I/O | USB | 4x USB 3.2 Type A (Integrated USB 2.0) 1x USB 2.0+3.2 Type C |
Camera | 1x 15pin CSI | |
Audio | 1×3.5 Audio Jack 2x MIC 2x SPEAKER 1x SPEAKER FEEDBACK | |
Display | 1x HDMI | |
Fan | 1x Fan Connector (5V PWM) | |
Multifunctional Port | 2x IIC; 1x CAN (FD) 1x SPI 7x IO 3.3V 2x UART 1x DEBUG 1x POWER 1x RESET 1x RECOVERY | |
RTC | 1x 3.0V RTC | |
Power | 9-20V(MAX 60W) DC Input | |

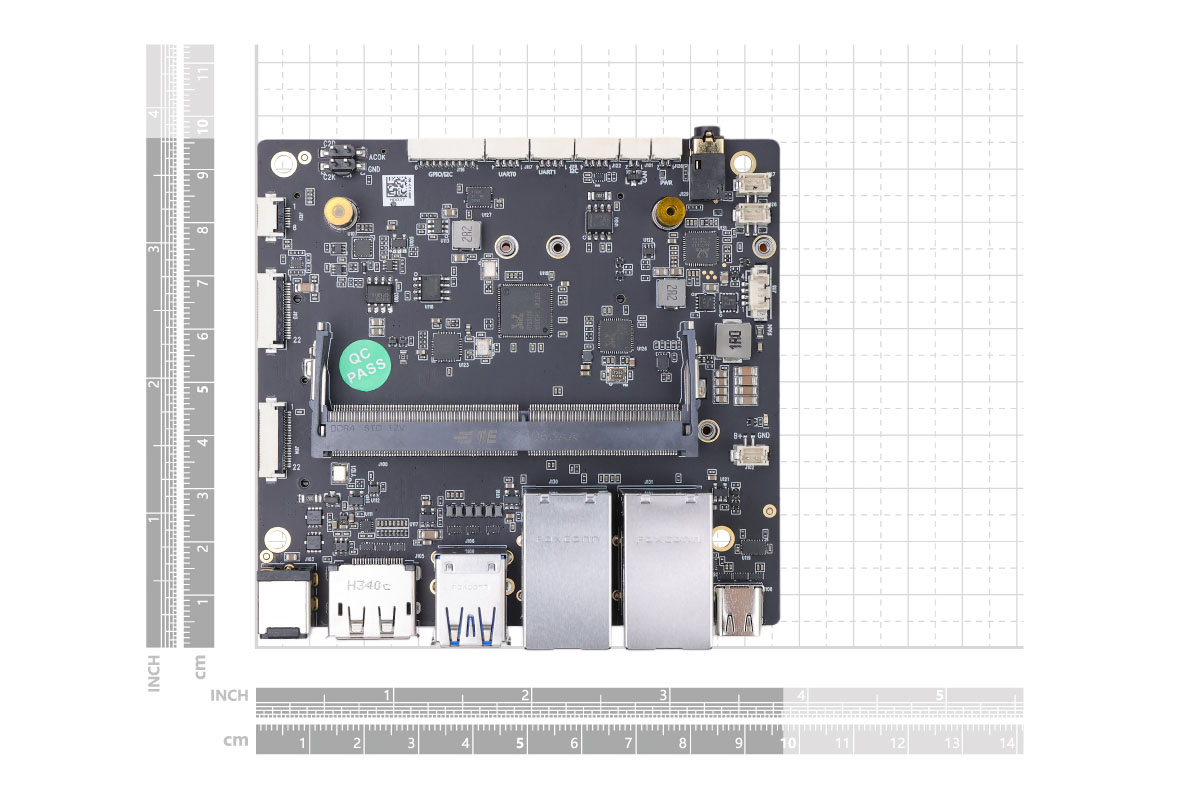

Mechanical (W x D x H) | 101.5mm x 95mm | |
Operating Temperature | -25℃~65℃ | |
