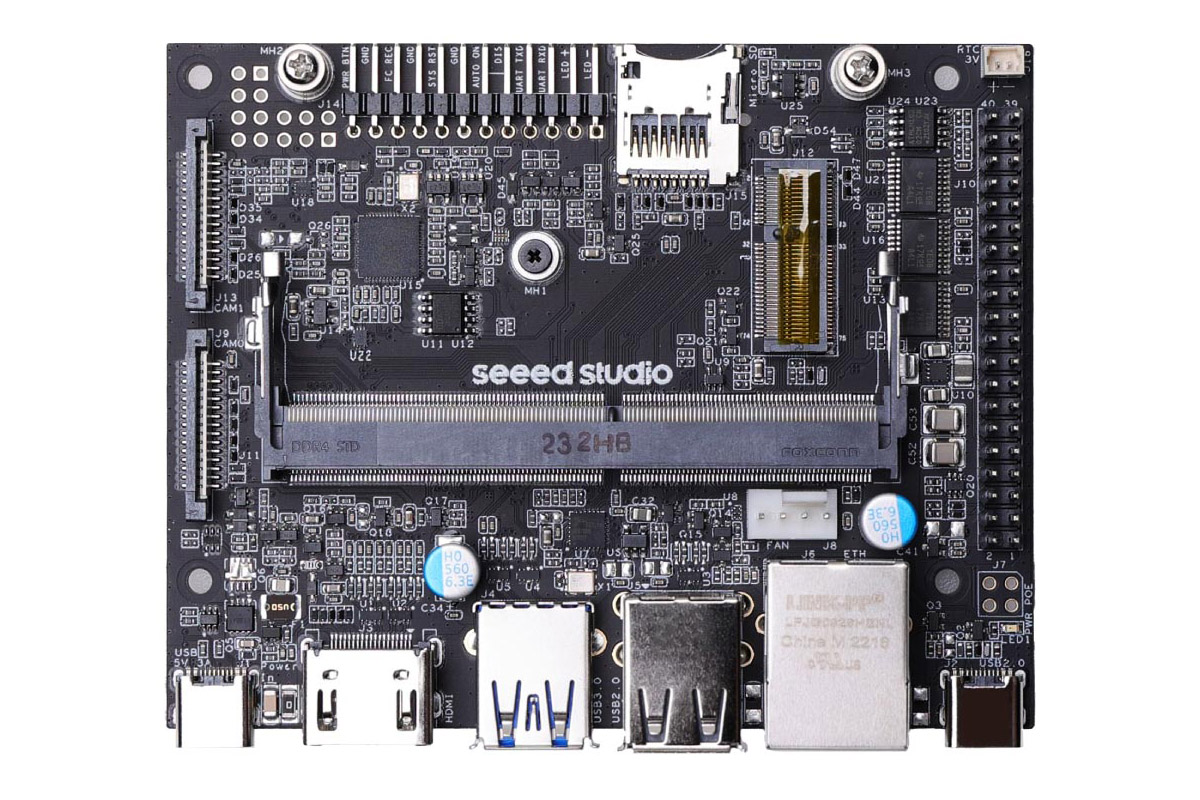

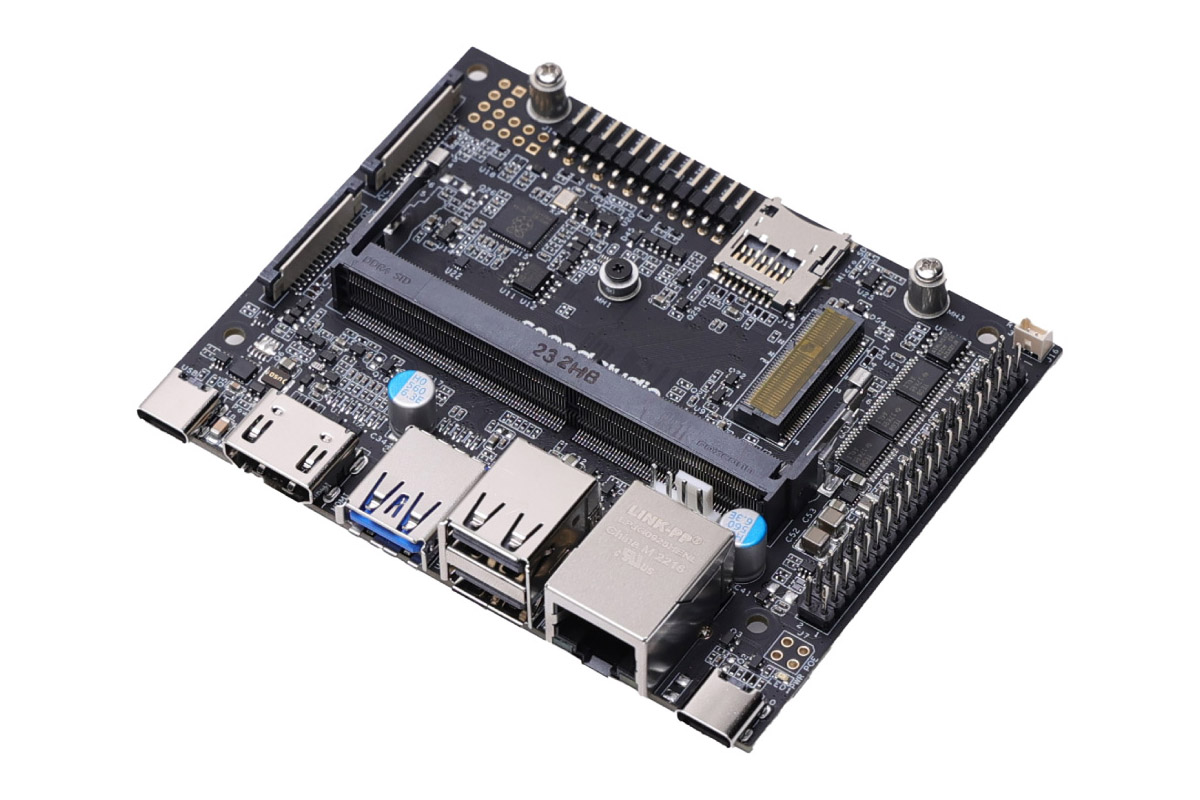

J101 Carrier Board for Jetson Nano
J101 carrier board is a cost-effective and interface-rich NVIDIA Jetson Nano compatible carrier board. It included HDMI2.0, 2x USB 2.0, 1x USB 3.0, micro SD card slot, 2 xCSI, M.2 key E WIFI / BT, GPIO, I2C, I2S, Fan, and other rich peripheral interfaces.
Contact us for large volume discount pricing:
Storage | 1x Micro SD card slot (48MHz CLK Frequency) | |
Networking | Ethernet | 1x Gigabit Ethernet (10/100/1000M) |
M.2 KEY E | 1x M.2 Key E PCIe 2230 | |
I/O | USB | 1x USB Type-C (Power In) 1x USB 3.0 Type-A (5 Gbps) 2x USB 2.0 Type-A 1x USB Type-C (Device mode) |
Camera | 2x CSI | |
Audio | 1x 3.5 Audio Jack 2x MIC 2x SPEAKER 1x SPEAKER FEEDBACK | |
Display | 1x HDMI | |
Fan | 1x Fan Connector (5V PWM) | |
Multifunctional Port | 1x 40-Pin 1x 12-PIn | |
RTC | 1x RTC 2-pin 1x RTC socket(reserved) | |
Power | 5V/3A (USB Type C) | |

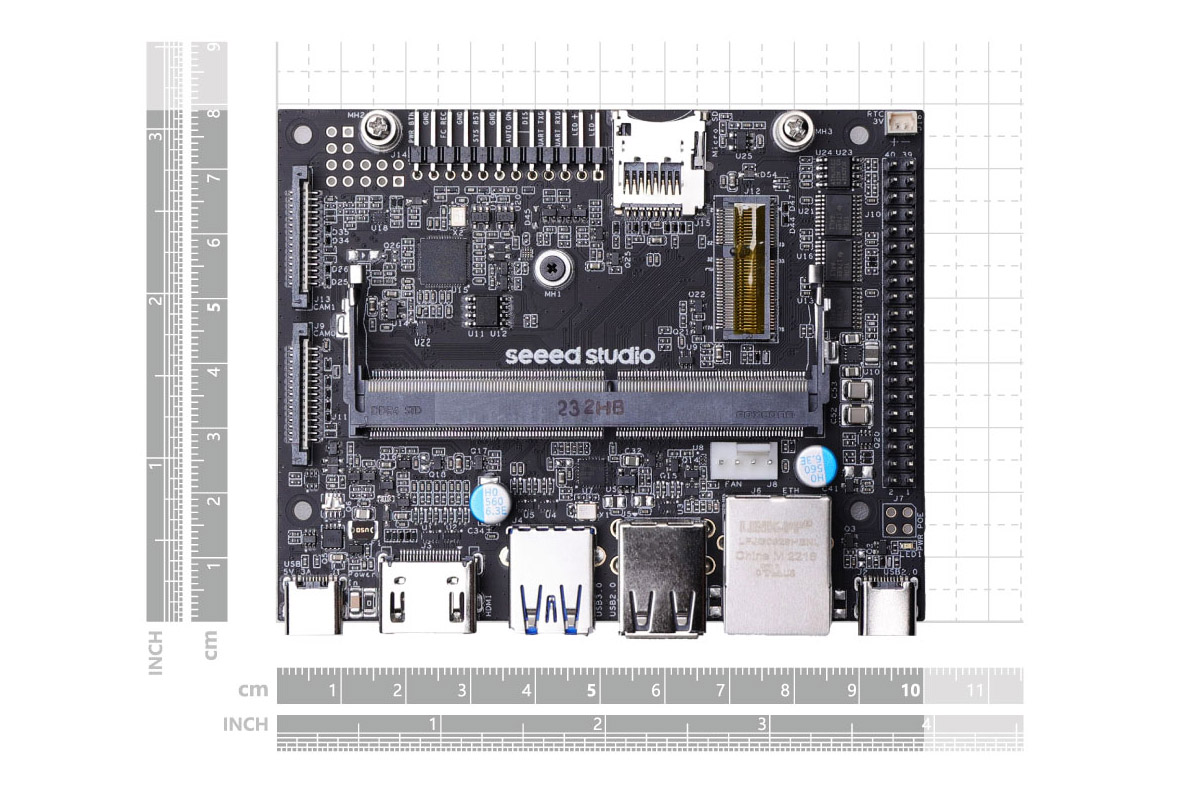

Mechanical (W x D x H) | 100mm x 80mm | |
Operating Temperature | -25℃~65℃ | |
