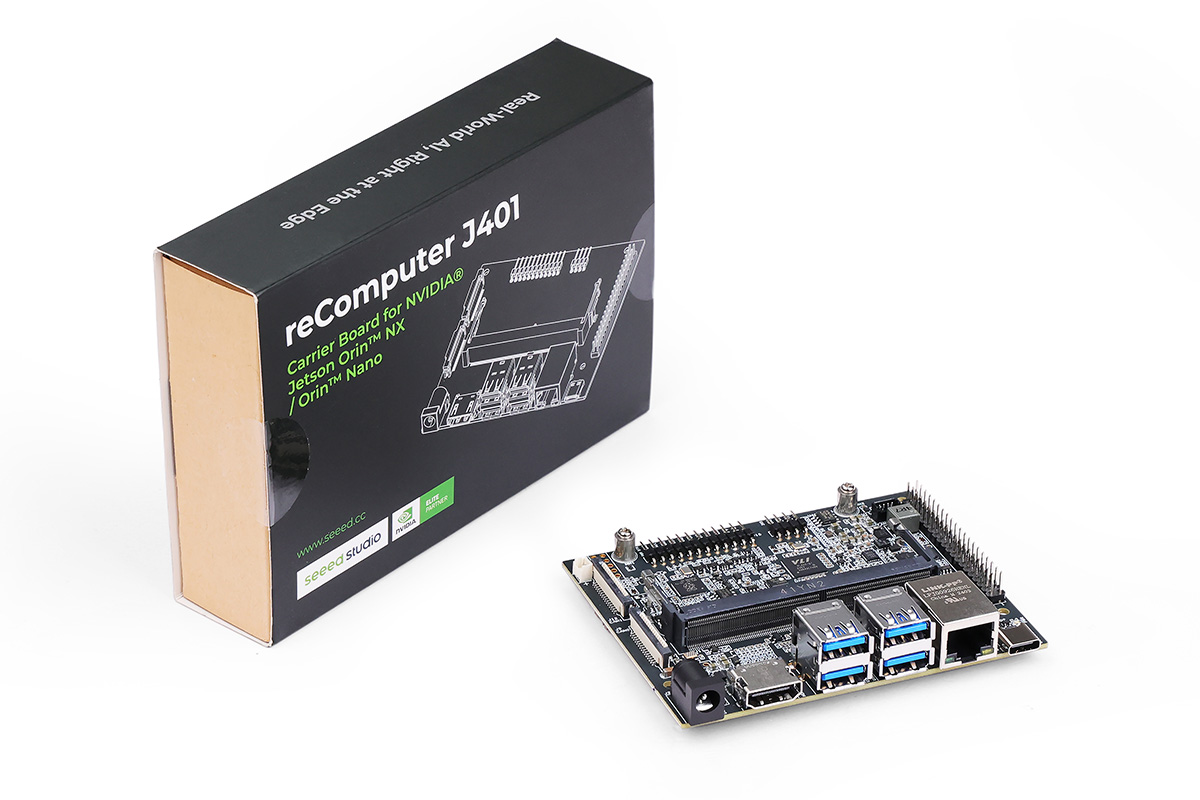

Carrier board for Jetson Orin Nano/Orin NX
The J401 carrier board is an advanced, open-source extension board for NVIDIA Jetson Orin Nano/ Orin NX modules. It breaks out typical IO interfaces from the SoM, offering high and low-speed connectivity. Its form-factor, performance, and ease of development make the Jetson Orin system flexible and scalable for rapid market entry and ongoing updates.
Contact us for large volume discount pricing:
| Storage | 1x M.2 Key M (connector to Support 2280 NVMe SSD) | |
| Networking | Ethernet | 1x RJ-45 Gigabit Ethernet (10/100/1000M) |
| M.2 KEY E | 1x M.2 Key E for WiFi/Bluetooth module | |
| I/O | USB | 4x USB 3.2 Type-A (10Gbps), 1x USB2.0 Type-C (Device Mode) |
| Camera | 2x CSI (2-lane 15pin) | |
| Display | 1x HDMI 2.1 | |
| Fan | 1x 4 pin Fan Connector (5V PWM) | |
| CAN | 1x CAN | |
| Multifunctional Port | 1x 40-Pin Expansion header
1x 12-Pin Control and UART header |
|
| RTC | 1x RTC 2-pin, supports CR1220 but not included | |
| Power | 9-19V DC | |
| Mechanical | Dimensions (W x D) | 100mm x 80mm |
| Installation | Desk, wall-mounting | |
| Operating Temperature | -10℃~60℃ | |
