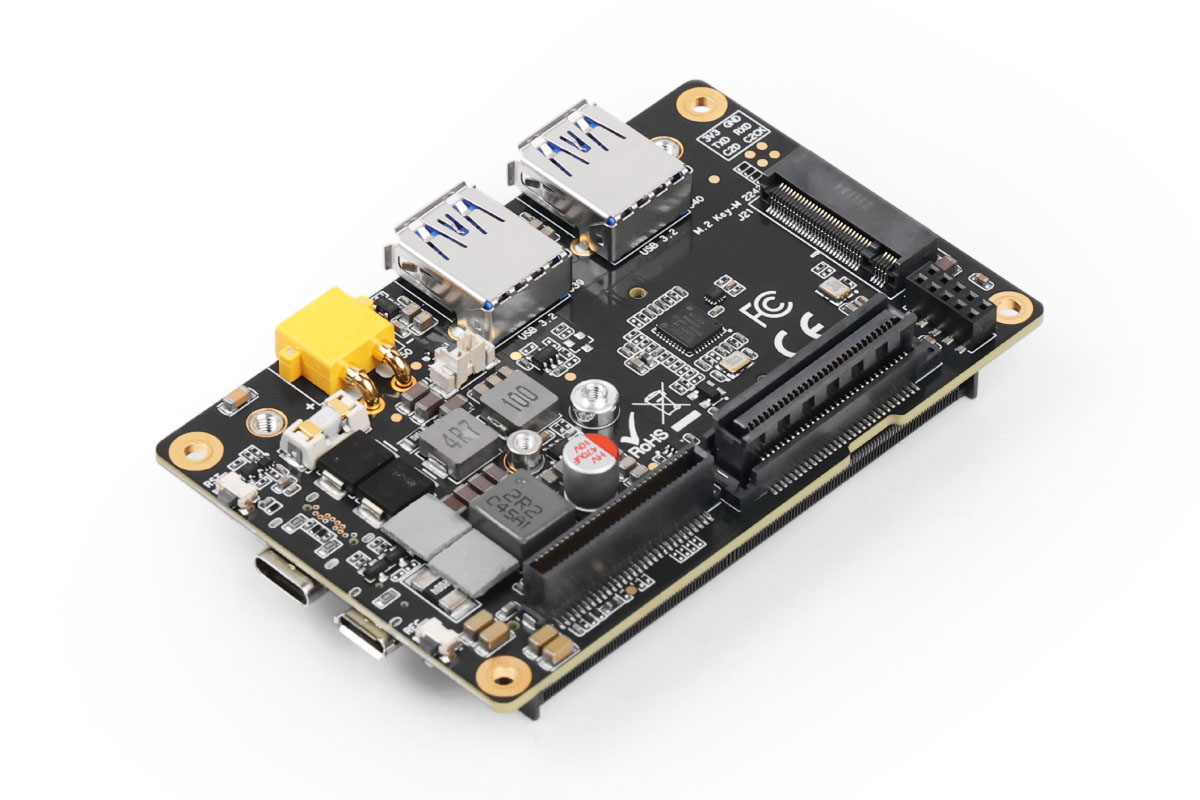

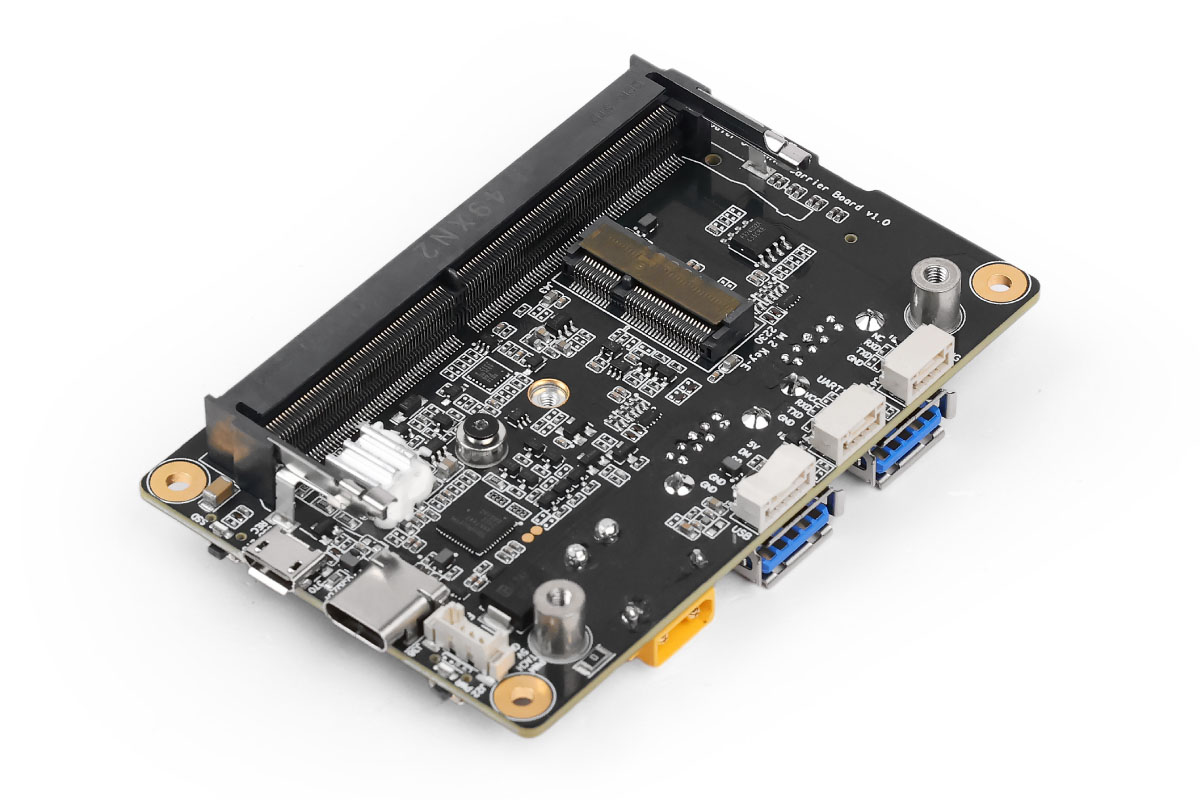

Mini Carrier Board for Jetson Orin
reComputer Mini is an 80g mission carrier board compatible with NVIDIA Jetson Orin Nano/Orin NX, built for UAV and UGV applications. It delivers up to 100 TOPS of AI performance for autonomous navigation, obstacle avoidance, and object detection. Supporting a wide range of sensors —RGB, infrared, LiDAR, 3D, and more— it combines extension board to connect with flight controllers via UART, Ethernet, and CAN. With 4S–14S battery input and external 5G/4G module, it enables real-time, responsive deployment in the field.
Contact us for large volume discount pricing:
Product | reComputer Mini Carrier Board | |
Storage | 1x M.2 Key M PCIe (M.2 NVMe 2242 SSD 128G NOT included) | |
Networking | M.2 KEY E | 1x M.2 Key E for WiFi/Bluetooth module |
I/O | USB | 2x USB 3.2 Type-A (10Gbps); 1x USB 2.0 Micro-B (Device Mode); 1x USB 3.2 Type-C (Host Mode); 1x USB 2.0 JST-5pin (Host Mode); |
UART | 1x UART 1x Debug Uart | |
Display | 1x DP 1.4 (included in Type-C conenctor) | |
Fan | 1x 4 pin Fan Connector (5V PWM) | |
Button | 1x Reset Button; 1x Recovery Button | |
Extension Port | 2x 60 pin High Speed Connector (For extension board) 1x 10 pin Power Connector (For extension board) | |
RTC | 1x RTC 2-pin | |
Power | 1 x XT30 Connector (12-54V DC) | |
Mechanical | Dimensions (W x D x H) | 56mm x 88mm x 17mm |
Weight | 80g (Without Extension) | |
Installation | Desk, wall-mounting | |
Operating Temperature | -10℃~50℃ | |
Warranty | 1 Year | |
