Mini Extension Board for Jetson Orin™ Nano/Orin™ NX

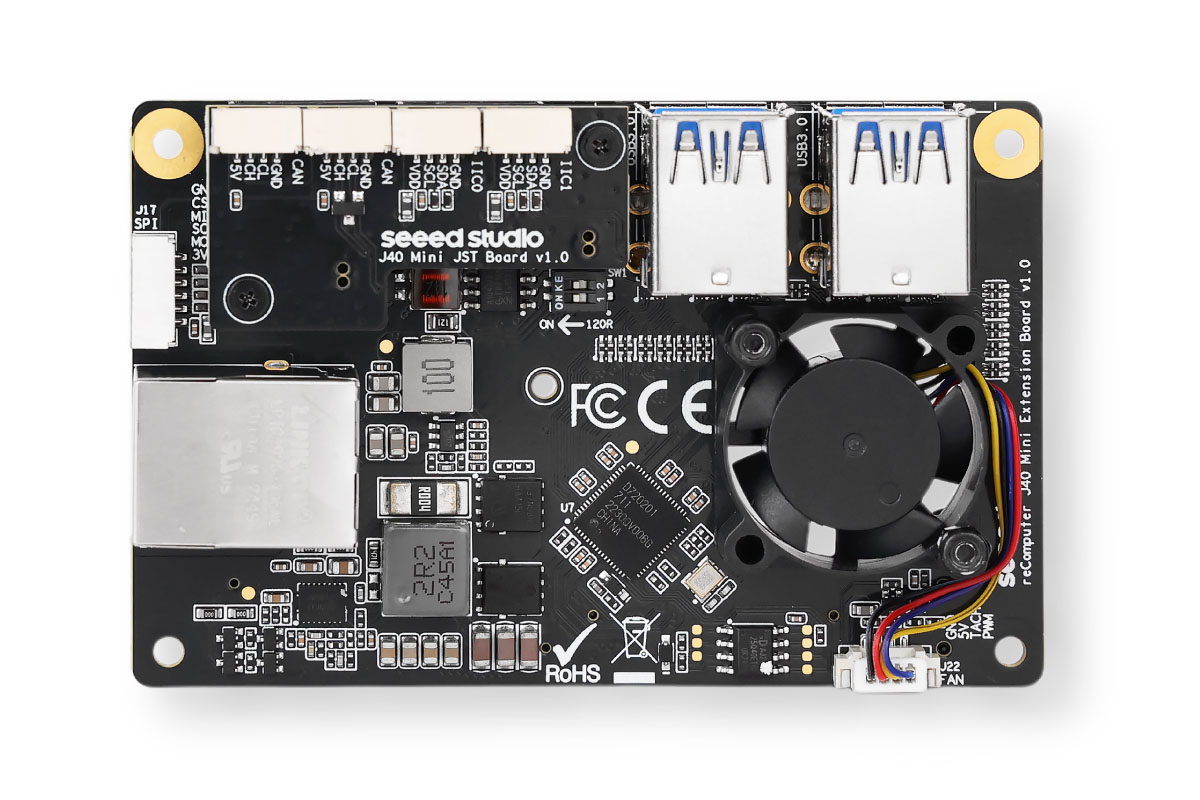

reComputer Mini Extension Board is designed to be connected to reComputer Mini Carrier board, and has a JST board attached to it. It provides IO extensions (Ethernet, IIC, CAN etc) that are widely used on autonomous machines such as drones, patrol robots, delivering robots, etc. It is attached to the bottom of reComputer Mini Carrier Board and needs to be used along with the reComputer Mini Carrier Board.
Contact us for large volume discount pricing:
Extension Board | ||
I/O | Ethernet | 1x RJ45 Gigabit Ethernet (10/100/1000M) |
USB | 4x USB 3.0 Type-A (5Gbps) | |
CAN | CAN0: XT30(2+2) x 2 CAN1: JST Connector x 2 | |
I2C | 2x I2C | |
SPI | 2x 60 pin High Speed Connector (For extension board) 1x 10 pin Power Connector (For extension board) | |

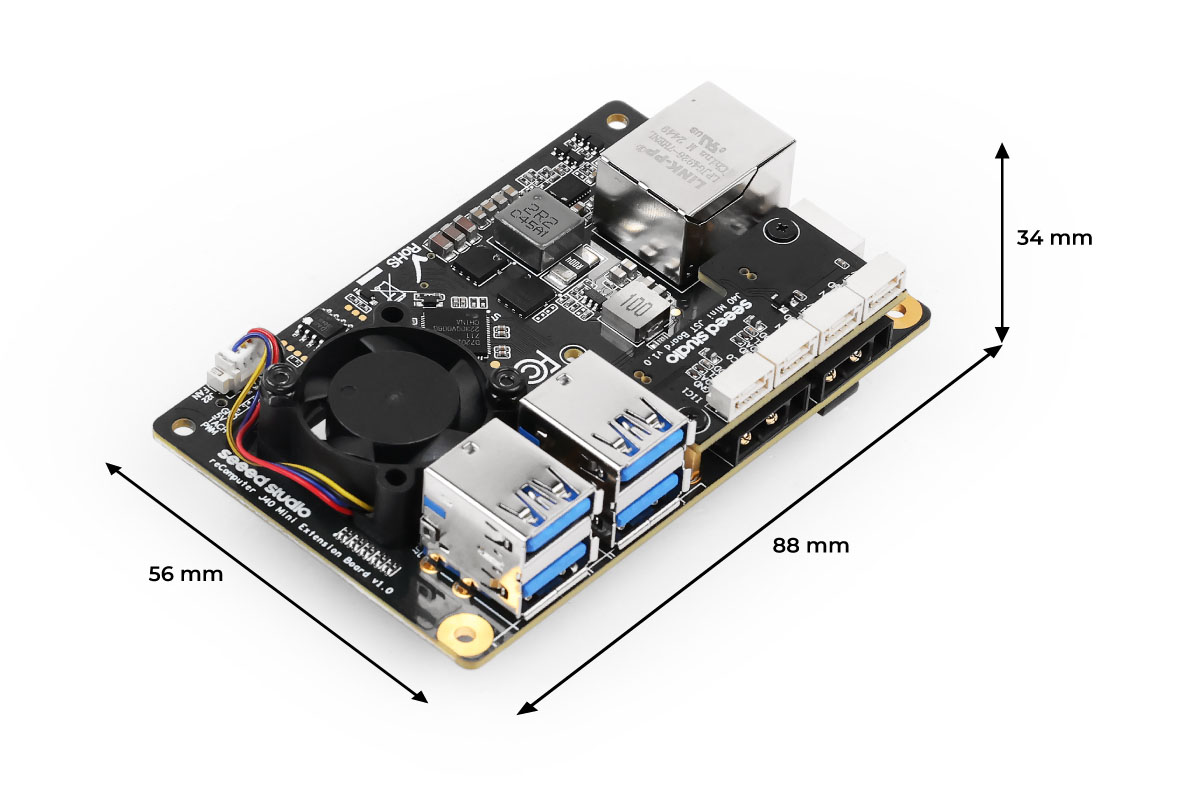

Mechanical | Dimensions (W x D x H) | 56mm x 88mm x 34mm |
Weight | 75g | |
Installation | Desk, wall-mounting | |
Operating Temperature | -10℃~50℃ | |
Warranty | 1 Year | |
