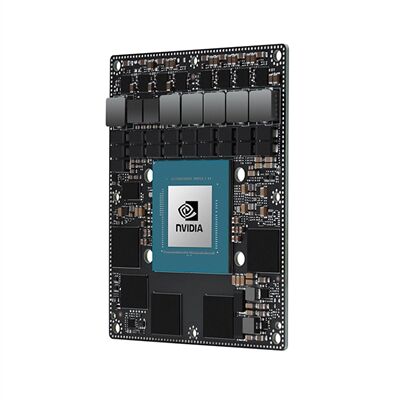

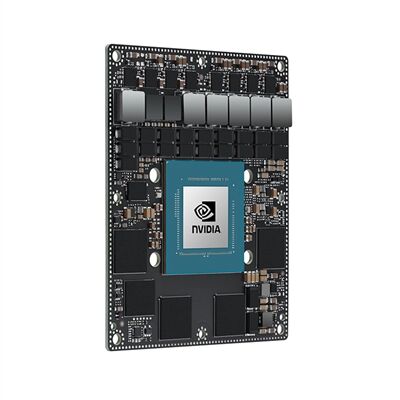

NVIDIA Jetson AGX Orin Module
The NVIDIA Jetson AGX Orin 64GB module delivers up to 275 TOPS of AI performance with power configurable between 15W and 60W. This gives you more than 8X the performance of Jetson AGX Xavier in the same compact form factor for robotics and other autonomous machine use cases.
Contact us for large volume discount pricing:
Specification
Feature | Details |
AI Performance | 275 TOPS |
GPU | 2048 Core Ampere, with 64 Tensor Cores |
DL Accelerator | (2x) NVDLA V2.0 |
Vision Accelerator | (2x) 7-way VLIW Processor |
CPU | 12 core Arm Cortex-A78AE 3MB L2 + 6MB L3 |
Memory | 64GB 256-bit LPDDR5 @ 2133MHz 205 GB/s |
Storage | 64GB eMMC |
Video Encode | 2x 4K60 | 4x 4K30 | 8x 1080p60 | 16x 1080p30 (H.265) H.264, AV1 |
Video Decode | 1x 8K30 | 3x 4K60 | 7x 4K30 | 11x 1080p60| 22x 1080p30 (H.265) H.264, VP9, AV1 |
Camera | 16-lane MIPI CSI-2 connector |
Mechanical | 100mm x 87mm 699 pin connector |
Power | 15W – 60W |
