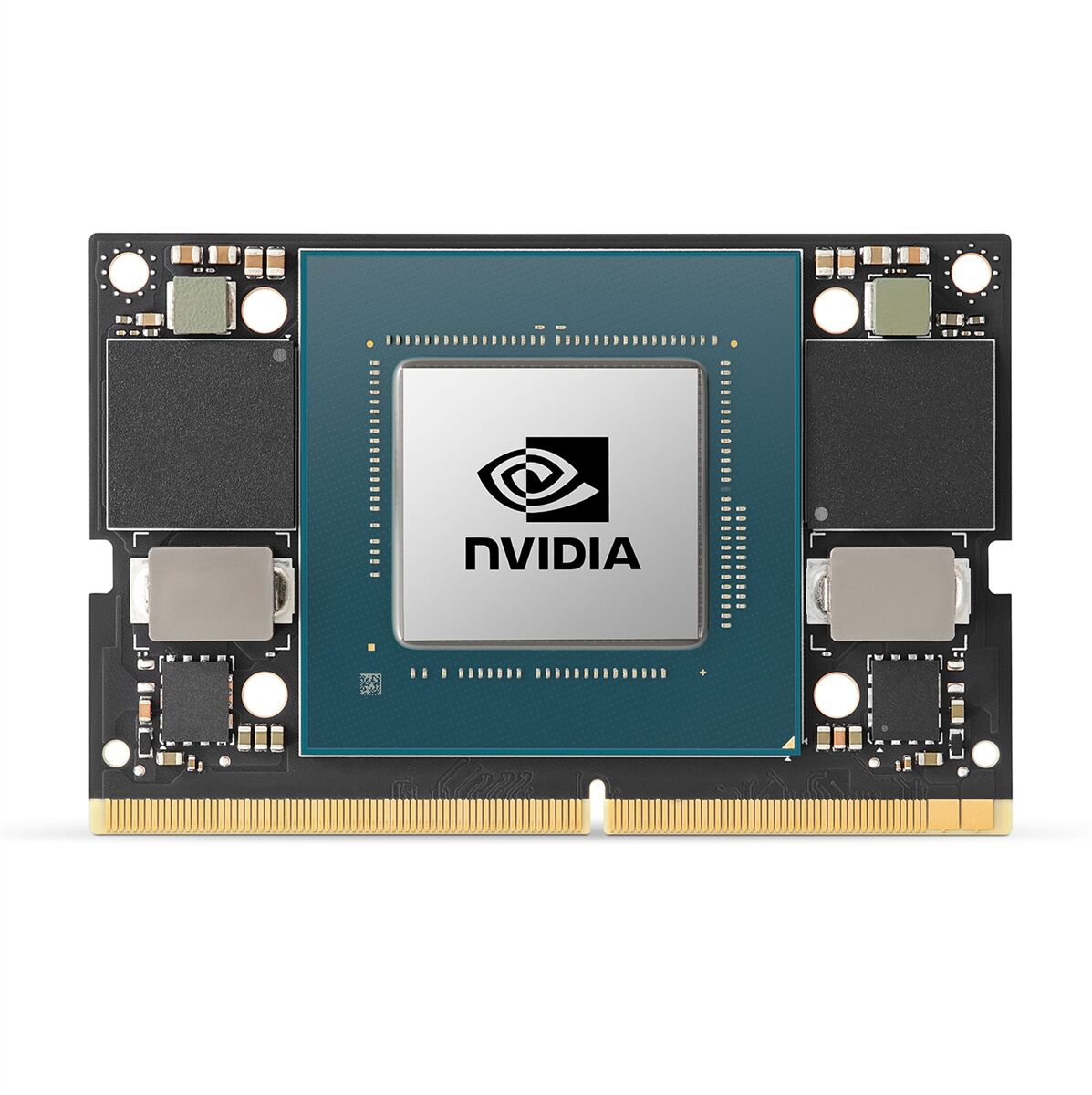

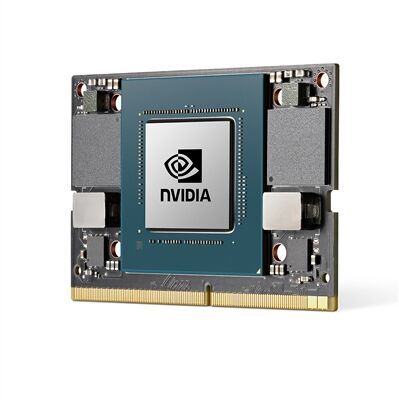

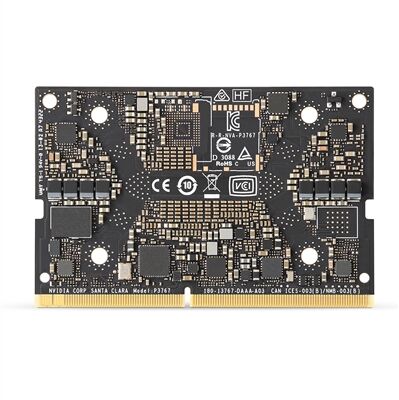

NVIDIA® Jetson Orin™ NX Module

The NVIDIA Jetson Orin NX 16GB module delivers up to 100 TOPS of AI performance in the smallest Jetson form-factor, with power configurable between 10W and 25W. This gives you 3X the performance of NVIDIA Jetson AGX Xavier and 5X the performance of NVIDIA Jetson Xavier NX, making it ideal for small form-factor, low-power products like drones and handheld devices.

Contact us for large volume discount pricing:

Request Quote

Feature	Details
AI Performance	100 TOPS
GPU	1024 Core Ampere, with 32 Tensor Cores
DL Accelerator	(2x) NVDLA V2.0
Vision Accelerator	PVA v2.0
CPU	8-core Arm Cortex-A78AE 2MB L2 + 4MB L3
Memory	16GB 128-bit LPDDR5 @ 2133 HMz 102.4 GB/s
Storage	Supports external NVMe
Video Encode	1x 4K60 \| 3x 4K30\| 6x 1080p60 \| 12x 1080p30 (H.265), H.264, H.265, AV1
Video Decode	1x 8K30 \| 2x 4K60 \| 4x 4K30 \| 9x 1080p60 \| 18x 1080p30 (H.265) H.264, H.265, VP9, AV1
Camera	Up to 4 cameras (8 via virtual channels*) 8 lanes MIPI CSI-2 D-PHY 1.2 (20 Gbps)
PCI Express	3 x1 + 1 (x4 PCIe Gen 4)
Mechanical	69.6mm x 45mm 260-pin connector
Power	10W / 15W / 25W

NVIDIA Jetson Orin NX Module
