Raspberry Pi Pico
Raspberry Pi Pico is equipped with the powerful RP2040 chip, features high performance and rich on-board interfaces/resources, yet offered a relatively low price. It is perfectly designed for the beginners to electronics, pretty suitable for IoT controlling applications.

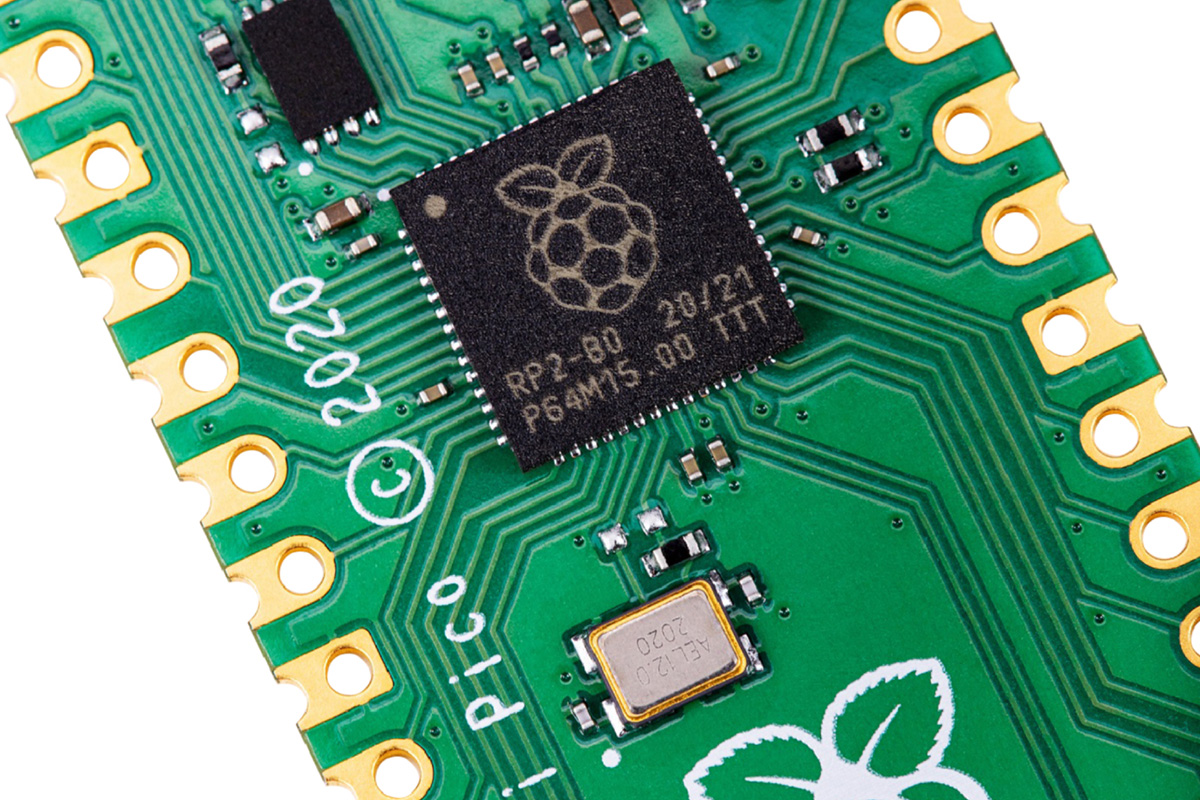

- Powered by RP2040 dual-core ARM Cortex M0+ processor, running up to 133 MHz, included 2MB of onboard Flash memory, mounted 25 multi-function GPIOs
- Drag & drop programming over a USB through MicroPython & Arduino
- Provide tons of projects and tutorials, allowing for quick positive programming feedback, getting started well with electronics
- Great Embedded Machine Learning platform by two cores of RP2040 chip and plenty of on-chip RAM, while also supporting TensorFlow Lite
Contact us for large volume discount pricing:
Specifications
| Parameter | Description |
| CPU | Dual-core ARM Cortex M0+ processor, flexible clock running up to 133 MHz |
| Storage | 264kB of SRAM, and 2MB of on-board Flash memory |

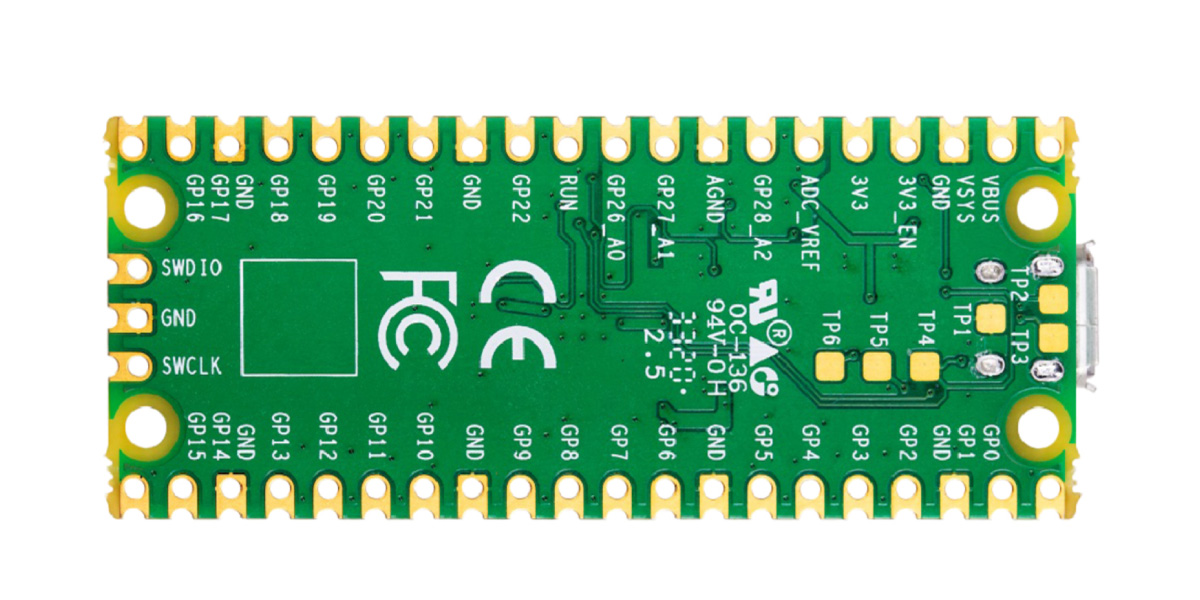

| GPIO pins | 26 multifunction GPIO pins, including 3 analogue inputs |
| Interface | 2× SPI, 2× I2C, 2× UART, 3× 12-bit ADC, 16× controllable PWM channels |
| Power supply & Downloading interface | USB Type-C interface |

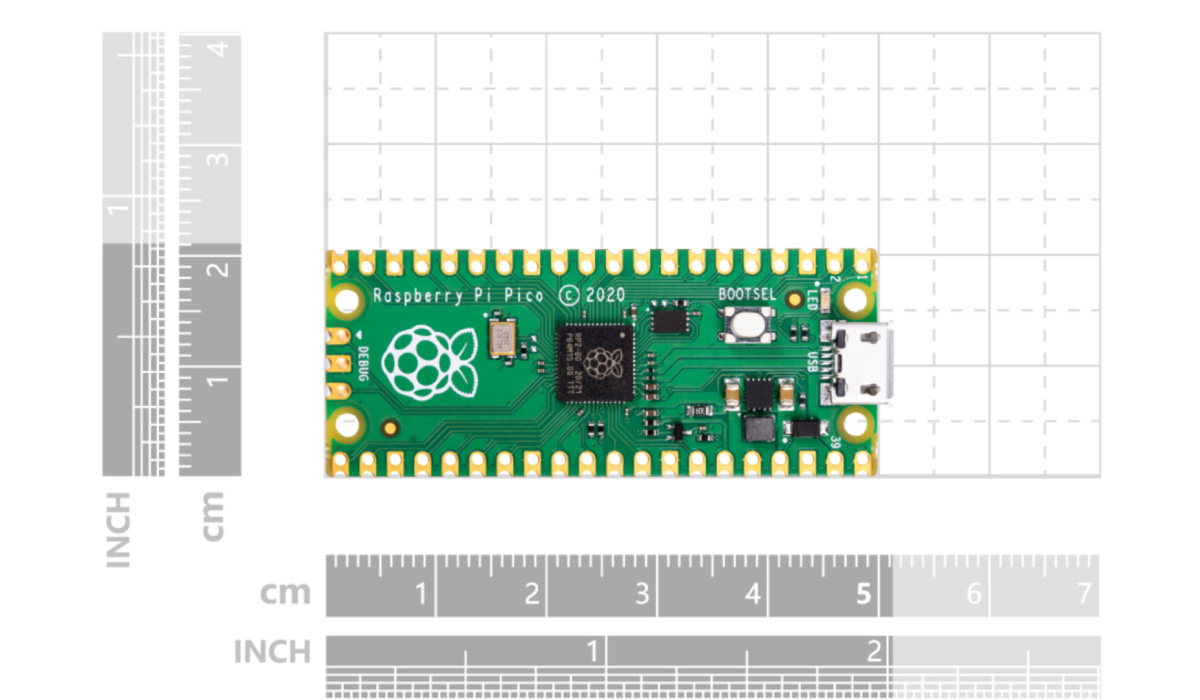

| Dimemsions | 21 mm × 51 mm form factor |
| Operating temperature | -20°C to +85°C (Raspberry Pi Pico and Pico H); -20°C to +70°C (Raspberry Pi Pico W and Pico WH) |
| Supported input power | 1.8–5.5V DC |
| On-chip resources | Accelerated floating point libraries on-chip |
