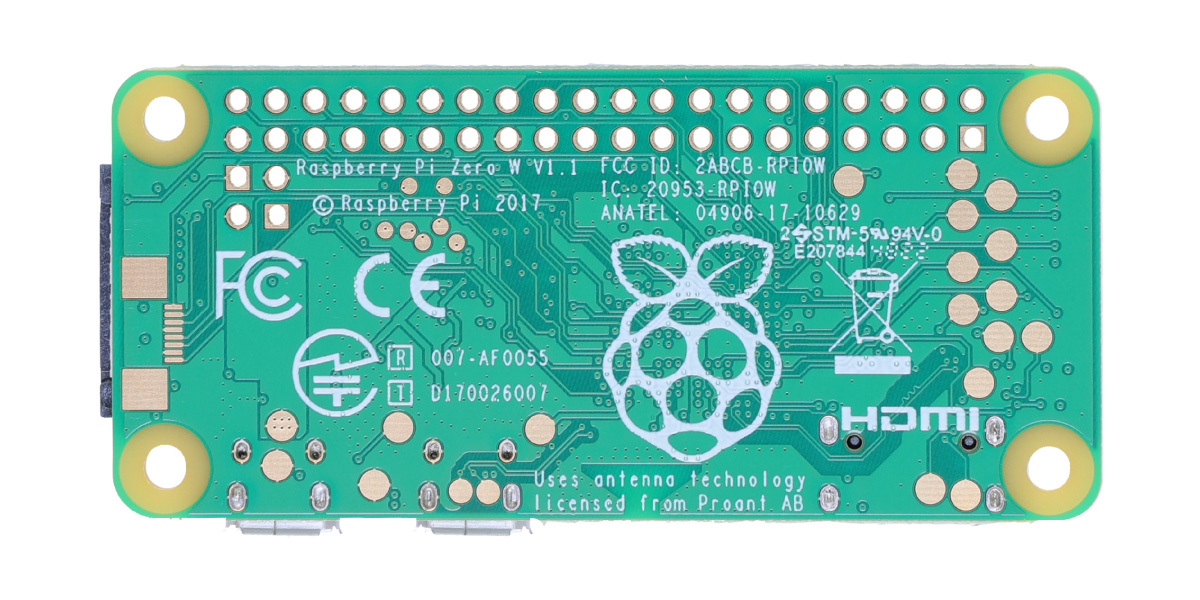

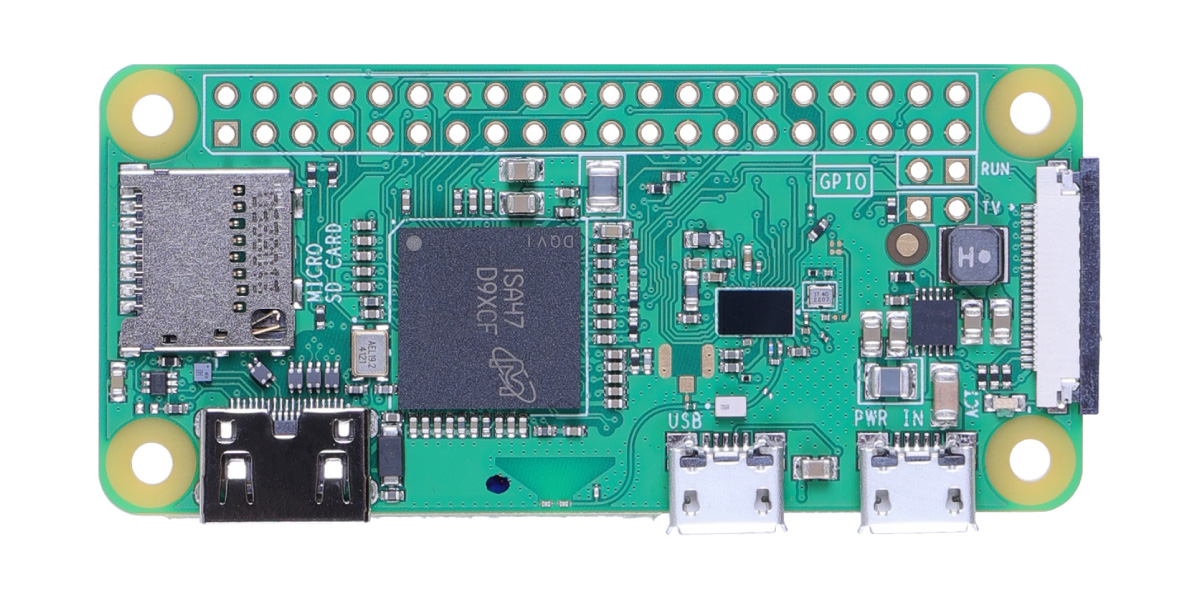

Raspberry Pi Zero W
The Raspberry Pi Zero W is a compact single-board computer (65mm x 30mm) with built-in 802.11n Wi-Fi and Bluetooth 4.0. It features 40 GPIO pins, a 1GHz ARM Cortex-A7 processor, 512MB RAM, and uses a microSD card for storage, ideal for IoT and automation projects.
- Equipped with a 1GHz ARM Cortex-A7 processor supporting Raspberry Pi OS, with a size of only 65mm x 30mm x 5mm
- Mounted with headers and ready for use
- Built-in 802.11n Wi-Fi and Bluetooth 4.1
- Compatible with connecting sensors, actuators, and other electronic components
- Utilize 512MB of LPDDR2 SDRAM and a microSD card as the primary storage medium
Contact us for large volume discount pricing:
Specifications
| Specification | Details | |
| Platform | Processor | Broadcom BCM2835 |
| Frequency | 1GHz, Single-core CPU | |
| Memory | Capacity | 512MB |
| Technology | LPDDR2 SDRAM | |
| Wireless | Wi-Fi | 2.4GHz IEEE 802.11b/g/n |
| Bluetooth | Bluetooth 4.1, BLE | |
| Video | HDMI | Mini HDMI |
| CSI | CSI camera connector(v1.3 only) | |
| USB | Port | Micro USB On-The-Go (OTG) port |
| GPIO | Header | HAT-compatible 40-pin header |
| Additional Header | Composite video and reset headers | |
| Power | port | Micro USB power port |
| Voltage | 5V DC | |
| Current | 2.5A | |
| Temperature | Operating Temperature | -20°C to +70°C |

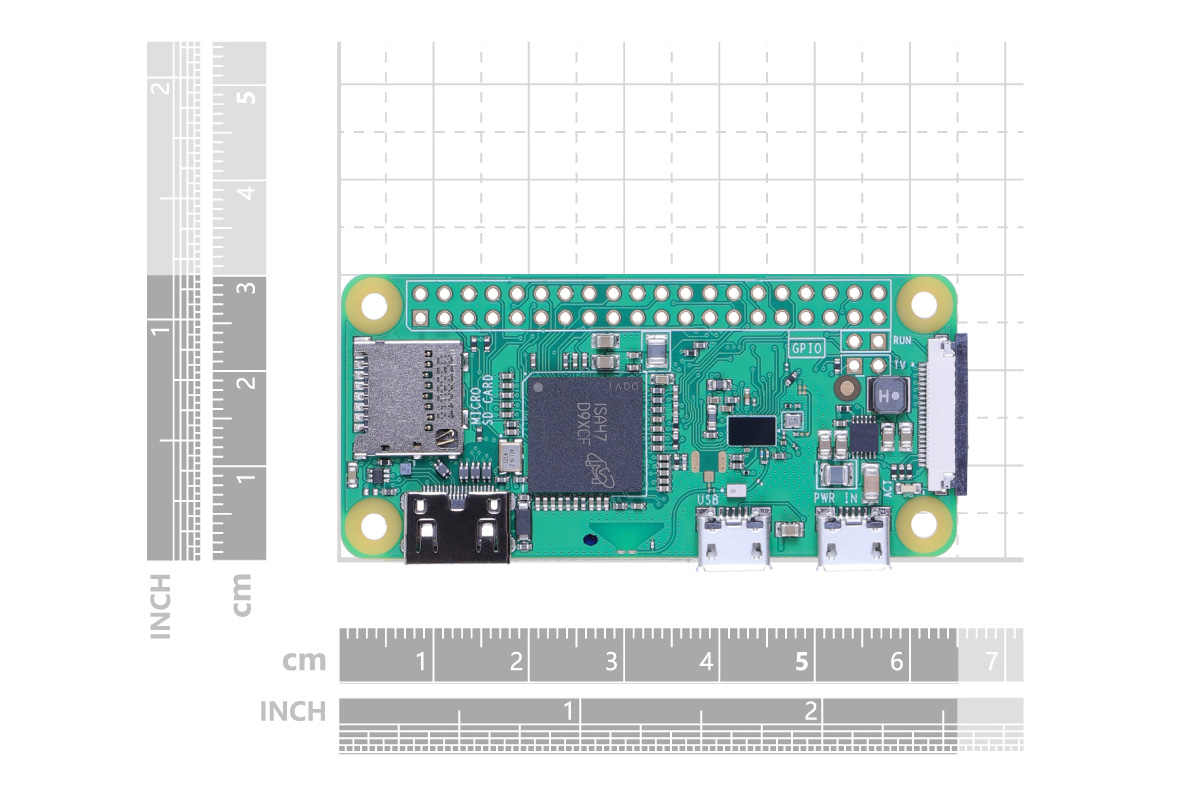

| Mechanical | Dimensions | 65mm × 30mm × 5mm |
| Weight | 9g | |
